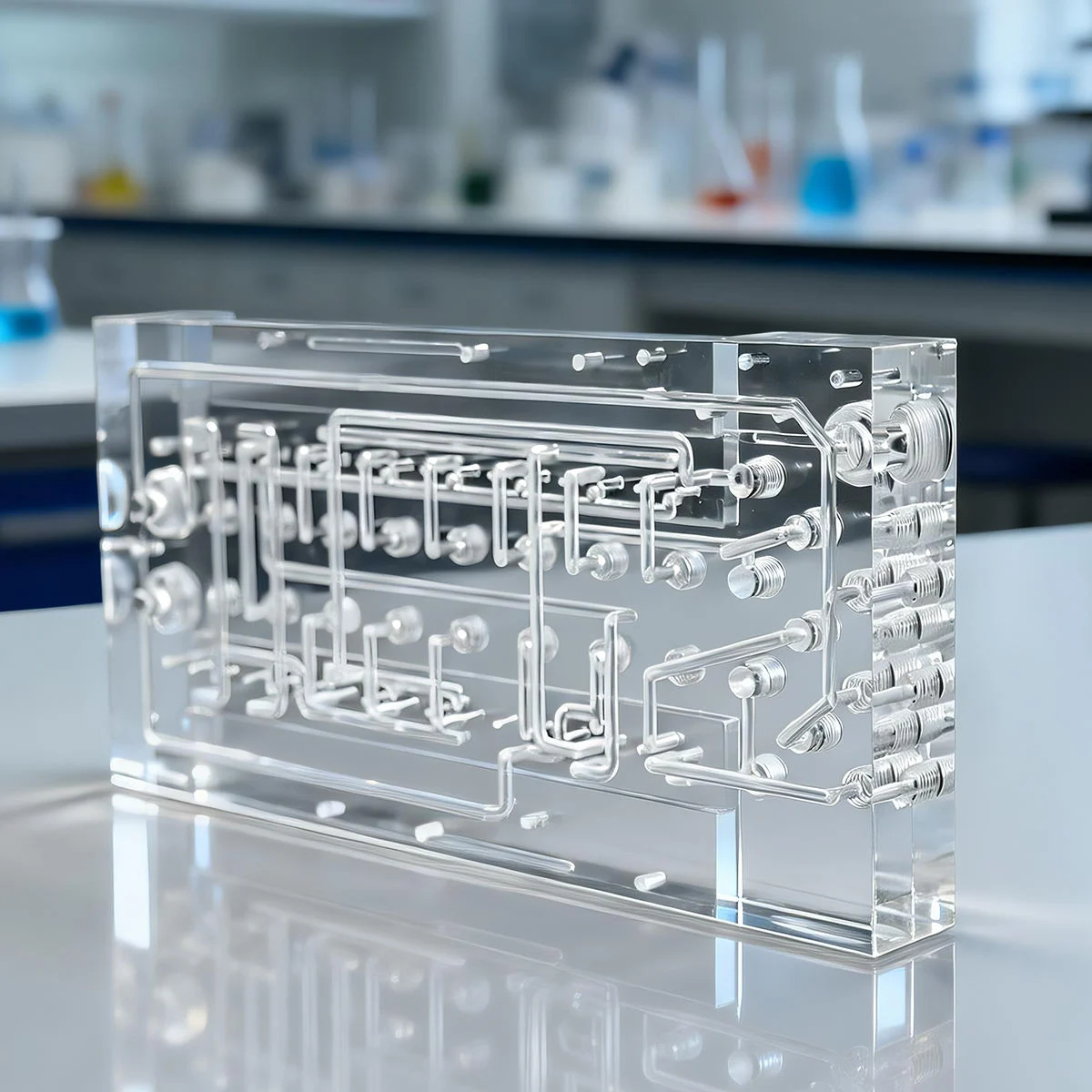

PMMA transparent acrylic microfluidic chip with precision machined channels

Project

Project Overview

This is a standard case study template built from real product imagery and non-confidential application structure. It does not disclose customer names, commercial terms or unapproved project results.

This template is prepared for PMMA microfluidic chip projects where the customer provides drawings, channel geometry, material requirements and application notes for engineering review.

Application

Application and Material

The template records application context and material selection without exposing confidential customer information.

ApplicationLaboratory, diagnostic development, scientific research or precision fluid handling.
MaterialPMMA / Acrylic selected for transparency, machinability and visual fluid observation.
Part TypePMMA microfluidic chip
Project TypeDrawing-based custom CNC machining

Customer

Customer Requirement

Customer Requirement: manufacture a transparent PMMA component according to supplied drawings, with controlled channels, port features and visible fluid paths. Quantity, tolerance and finish requirements should be confirmed during RFQ.

Engineering

Engineering Challenge

Channel definition

Small channels and holes require careful tool selection, burr control and geometry review.

Transparency and surface condition

PMMA parts may require controlled machining marks, edge quality and optional polishing depending on the application.

Manufacturing

Manufacturing Solution

The solution section describes the engineering approach without claiming unverified customer outcomes.

Drawing review

Review channel layout, port positions, material notes, tolerance requirements and bonding or sealing areas.

Precision machining

Machine channels, pockets, holes and interfaces using a process planned around PMMA material behavior.

Handling protection

Protect transparent surfaces during inspection, packing and shipment to reduce scratches and edge damage.

Inspection

Inspection Process

Inspection scope should be confirmed during RFQ according to customer drawing requirements.

Critical dimensions

Check marked channel, hole and interface dimensions according to the drawing.

Visual inspection

Review transparency, burrs, edges and visible surfaces.

Documentation option

Dimensional report or inspection notes can be discussed during RFQ.

Result

Result

Result: project-specific performance data is not published without customer approval. This section is reserved for verified, non-confidential results after a real customer project is approved for publication.
